Specifications
Model
|
Vertical
stroke(mm)
|
Retracting
stroke(mm)
|
Suitable vessel diameter
|
CZ-2×2
|
2000
|
2000
|
500～2000
|
CZ-3×3
|
3000
|
3000
|
600～3000
|
CZ-4×4
|
4000
|
4000
|
800～4000
|
CZ-5×5
|
5000
|
5000
|
1000～5000
|
CZ-3×4
|
3000
|
4000
|
600～3000
|
CZ-3.5×5
|
3500
|
5000
|
1000～3500
|

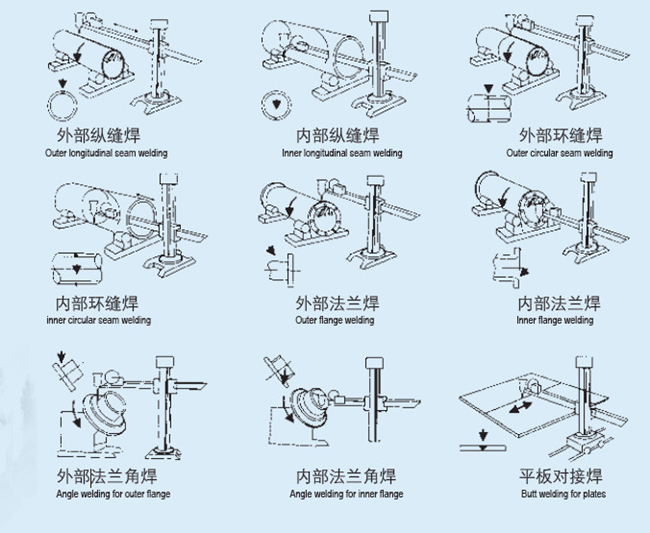

Welding Application Area
Brief Description of the product:

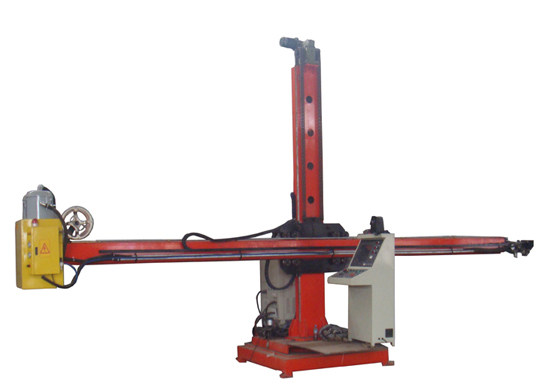

The welding manipulator is specially used for automatic
welding of inner & outer circular seam and longitudinal seam. The welding
frame and idler welding frame can be controlled isochronously. The auto welding
machine has the stationary type, fixed rotary type, fixed walking type, walking
and rotary type, etc.All
types could customized as
client's requirement.
The following functions can be selected according to the demand:
-
±180 degree manual rotation for Colum
-
±180 degree manual rotation for Colum180 degree automatic rotation for Column
-
Equipped with guide electric welding car
-
Equipped with Welding infrared Detection System
