LGK-160 Plasma Welder |

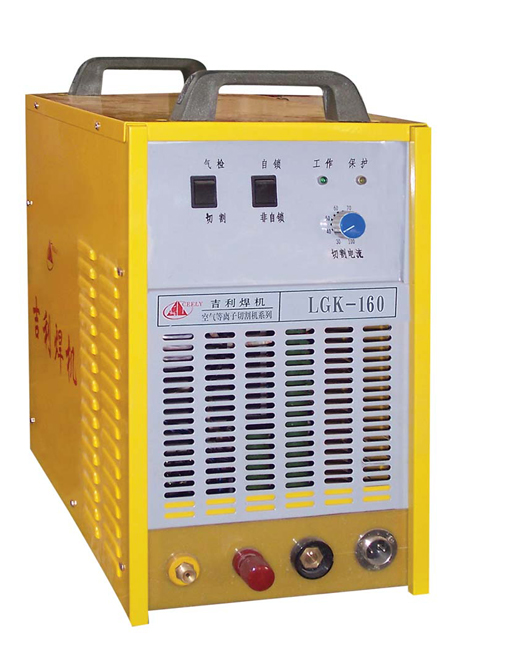

| LGK-160 Plasma Welder |
Specifications
Model
|
LGK-160
|
Power Supply Voltage(V)
|
Three-Phase 380±10％ 50HZ
|
Rated Power Input(KVA)
|
32.7
|
Rated input current (A)
|
45
|
Output Current
adjusting range
|
30 ~ 160
|
No-load
Voltage(V)
|
400
|
Rated Load Voltage(V)
|
132
|
Rated
load duration rate (%)
|
60
|
Cutting torch air pressure (MPA)
|
0.45
|
Cutting gas flow rate (L/MIN)
|
250
|
Max thickness of cutting for carbon steel (mm)
|
40
|
Optimal thickness of cutting for carbon steel (mm)
|
1 ~ 35
|
Brief Description of the product:
-
LGK
series Air-plasma cutting machine uses plasma airflow of high speed, high
temperature and high energy to heat and melt the cut material and uses
compressed air provided by common air compressor as the working gas and airflow
to eliminate the melted metal airflow so as to cut the metal. Because the
temperature of the plasma arc is high, it can cut carbon steel, high speed
steel, tool steel, stainless steel, brass, aluminum and most of the ferrous
metals and nonferrous metals, especially being applicable to cut stainless steel and
carbon steel plate of no more than 30 mm.
-
Using IGBT high frequency inventor. Be small and light.
-
The
cut is leveling and the deformation of the work piece is little. The
utilization rate of the material is
high. The cutting cost is low.
-
High
frequency start arc is used. Arc starting is easy.
-
Soft switching transformation, efficiency is high.
-
Passive
power factor correction is used. The power factor is high.
-
It adopts delay gas stopping function,which effectively protects cutting
torch.
-
Two/Four-step cutting status.
|
|
| |
|
