Specifications
Transverse width of guide
|
3m (1m/section can be lengthened)
|
Effective cutting width
|
2.4m (1m/section can be lengthened)
|
Longitudinal guide length
|
3m (3m/section can be lengthened infinitely)
|
Effective cutting length
|
2.0m (3m/section can be lengthened infinitely)
|
Flame cutting torch
|
1 pc
|
Flame cutting thickness
|
5~200mm
|
Plasma cutting torch
|
1 pc
|
Plasma cutting thickness
|
according to the power supply of plasma
|
Movement precision
|
0.01mm/step
|
Movement speed
|
3500mm/min
|
Driving way
|
double driving
|
Self-adjustable height
|
0 ~ 230 mm
|
Brief Description of the Product:

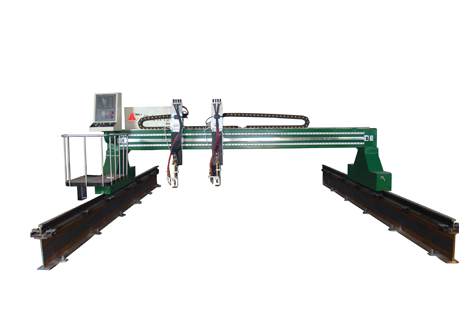

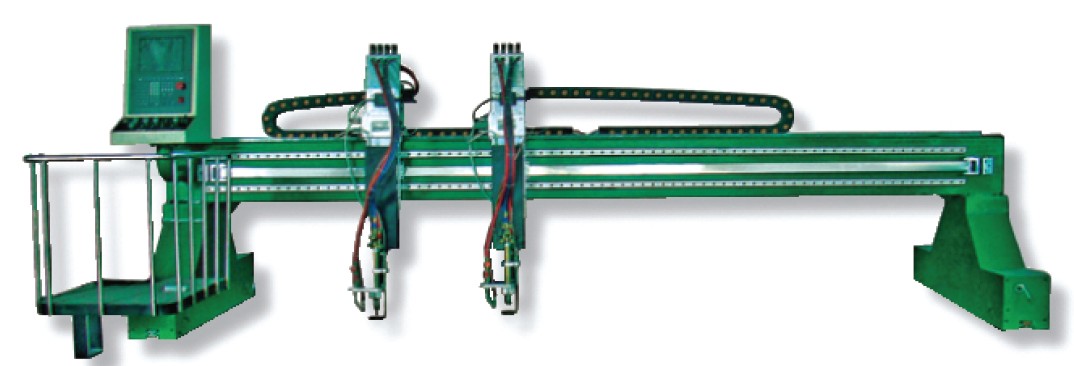

This machine adopts gantry type
structure with transverse span of 3m~10m, and which is driven by linear guide
and double driving system; it could be equipped with many flame & plasma
torches and automatic height adjustment system to make it to be CNC cutting
machine or straight cutting machine. PLC control, follow the CAD drawing during
cutting, fast and accurate.
