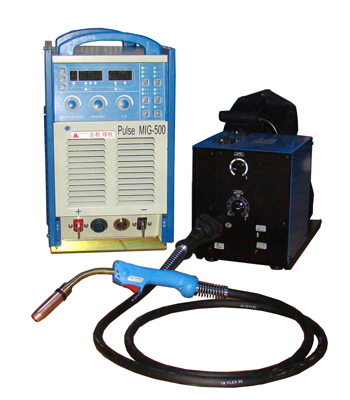

Pulse MIG-500 Welder |
| Pulse MIG-500 Welder |
Specifications
Model
|
Pulse MIG-500
|
Rated input voltage/frequency
|
Three-phase 380V±10% 50Hz
|
Rated input capacity (KVA)
|
25
|
Rated input current (A)
|
38
|
Rated output voltage (V)
|
39
|
Rated load duration rate (%)
|
60
|
Ouput no-load voltage(V)
|
79
|
Output current range (A)
|
60 ~ 500
|
Output voltage range (V)
|
15 ~ 50
|
Power factor
|
≥0.87
|
Wire diameter (mm)
|
1.0、1.2、1.6
|
Wire Type(Pulse/Constant voltage)characteristics
|
Carbon steel, stainless steel, aluminum and magnesium alloys, pure aluminum and aluminum silicon alloy, copper/Carbon steel
|
Wire Feeding Type
|
Push the wire
|
Gas flow rate (L/min)
|
15 ~ 20
|
Welding Gun Cooling Mode
|
Water/Air cooled
|
Shell protection class
|
IP21S
|
Insulation class
|
H/B
|
Dimensions LxWxH (mm)
|
636×322×584
|
Weight(Kg)
|
53
|
|
|
| |
|
